Ordered MNIST (torch)

Authors: Pietro Novelli and Giacomo Turri

This example closely follows the experiment from “Learning invariant representations of time-homogeneous stochastic dynamical systems” [1], implemented using PyTorch.

Setup

We begin by loading the Ordered MNIST dataset from kooplearn and visualizing a small sample.

import matplotlib.pyplot as plt

from kooplearn.datasets import fetch_ordered_mnist

# We only use the digits 0 to 4
num_digits = 5
images, labels = fetch_ordered_mnist(num_digits=num_digits)
# Plot the data
fig, axs = plt.subplots(nrows=2, ncols=num_digits, figsize=(0.8*num_digits, 1.3))
for img, ax in zip(images, axs.ravel()):
    ax.imshow(img, cmap="Greys")
    ax.axis("off")
fig.suptitle("Ordered MNIST", fontsize=16)
plt.show()

We split the dataset into training, validation, and test sets, using 3,000 points for training, 1,000 for validation, and 1,000 for testing.

import numpy as np

# train images will be images[train_ids] and so on
train_ids, val_ids, test_ids = np.split(np.arange(5000), [3000, 4000])

Training the Oracle

Each evolution operator model will be validated as follows: starting from a test image of digit \(c\), we predict the next image using model.predict. The prediction should resemble an MNIST-style image of digit \(c+1\) (modulo configs.classes).

We then feed this predicted image to a pretrained MNIST classifier (the oracle) and evaluate how its accuracy changes over successive predictions.

We begin by defining the oracle classifier.

import torch
from torch.utils.data import DataLoader, TensorDataset

device = "cuda" if torch.cuda.is_available() else "cpu"

class CNNEncoder(torch.nn.Module):
    def __init__(self, num_classes):
        super(CNNEncoder, self).__init__()
        self.conv1 = torch.nn.Sequential(
            torch.nn.Conv2d(
                in_channels=1,
                out_channels=16,
                kernel_size=5,
                stride=1,
                padding=2,
            ),
            torch.nn.ReLU(),
            torch.nn.MaxPool2d(kernel_size=2),
        )
        self.conv2 = torch.nn.Sequential(
            torch.nn.Conv2d(16, 32, 5, 1, 2),
            torch.nn.ReLU(),
            torch.nn.MaxPool2d(2),
        )
        # Fully connected layer, output num_classes classes
        self.out = torch.nn.Linear(32 * 7 * 7, num_classes)

    def forward(self, X):
        if X.dim() == 3:
            X = X.unsqueeze(1)  # Add a channel dimension if needed
        X = self.conv1(X)
        X = self.conv2(X)
        # Flatten the output of conv2
        X = X.view(X.size(0), -1)
        output = self.out(X)
        return output

# Will be needed for autoencoder-based koopman operator learning.
class CNNDecoder(torch.nn.Module):
    def __init__(self, num_classes=10):
        super(CNNDecoder, self).__init__()
        self.fc = torch.nn.Sequential(
            torch.nn.Linear(num_classes, 32 * 7 * 7)
        )

        self.conv1 = torch.nn.Sequential(
            torch.nn.Upsample(scale_factor=2),
            torch.nn.ReLU(),
            torch.nn.ConvTranspose2d(
                in_channels=32,
                out_channels=16,
                kernel_size=5,
                stride=1,
                padding=2,
            )
        )
        self.conv2 = torch.nn.Sequential(
            torch.nn.Upsample(scale_factor=2),
            torch.nn.ReLU(),
            torch.nn.ConvTranspose2d(16, 1, 5, 1, 2)
        )
    def forward(self, x):
        x = self.fc(x)
        x = x.view(x.size(0), 32, 7, 7)
        x = self.conv1(x)
        x = self.conv2(x)
        #Remove the channel dimension
        x = x.squeeze(1)
        return x

Now we train the oracle classifier.

def train_oracle_classifier():
    torch.manual_seed(42)
    num_epochs = 20
    # Prepare data
    # (1) Convert to PyTorch tensors
    X_train = torch.tensor(images[train_ids], dtype=torch.float32)
    labels_train = torch.tensor(labels[train_ids], dtype=torch.long)
    X_val = torch.tensor(images[val_ids], dtype=torch.float32)
    labels_val = torch.tensor(labels[val_ids], dtype=torch.long)
    # (2) Create data loaders
    train_dataset = TensorDataset(X_train, labels_train)
    train_dl = DataLoader(train_dataset, batch_size=64, shuffle=True)
    val_dataset = TensorDataset(X_val, labels_val)
    val_dl = DataLoader(val_dataset, batch_size=len(val_dataset), shuffle=False)
    # Define model and optimizer
    oracle = CNNEncoder(num_classes=num_digits).to(device)
    optimizer = torch.optim.AdamW(oracle.parameters(), lr=8e-4)

    def step(images, labels, is_train: bool = True):
        if is_train:
            oracle.train()
        else:
            oracle.eval()

        images, labels = images.to(device), labels.to(device)

        if is_train:
            optimizer.zero_grad()

        outputs = oracle(images)
        loss = torch.nn.functional.cross_entropy(outputs, labels)
        if is_train:
            loss.backward()
            optimizer.step()

        acc = (outputs.argmax(1) == labels).float().mean().item()
        return acc

    for epoch in range(num_epochs):
        train_acc = []
        val_acc = []
        for batch in train_dl:
            train_acc.append(step(*batch))
        with torch.no_grad():
            for batch in val_dl:
                val_acc.append(step(*batch, is_train=False))
        if (epoch + 1)%5 == 0 or (epoch == 0):
            print(f"EPOCH {epoch + 1:>2}  Accuracy: {np.mean(train_acc)*100:.1f}% (train) -  " \
                  f"{np.mean(val_acc)*100:.1f}% (val)")
    return oracle
oracle = train_oracle_classifier()

EPOCH  1  Accuracy: 78.5% (train) -  94.8% (val)
EPOCH  5  Accuracy: 97.9% (train) -  97.5% (val)
EPOCH 10  Accuracy: 99.5% (train) -  98.3% (val)
EPOCH 15  Accuracy: 99.8% (train) -  99.1% (val)
EPOCH 20  Accuracy: 100.0% (train) -  98.9% (val)

Evolution Operator Models

Next, we will train multiple evolution operator models that predict the next image given the current one. Each model will be stored in trained_models for later evaluation.

# Global variable collecting the trained models
trained_models = {}

Linear model

As a baseline evolution operator, we fit a simple linear Ridge model (equivalent to Principal Component Regression) on the flattened pixel features using kooplearn’s FeatureFlattener.

from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler

from kooplearn.linear_model import Ridge
from kooplearn.preprocessing import FeatureFlattener

# Data preparation
flattener = FeatureFlattener()
scaler = StandardScaler()
data_pipe = Pipeline([("flattener", flattener), ("scaler", scaler)])
data_pipe.fit(images[train_ids])

linear_model = Ridge(n_components=num_digits, eigen_solver="dense")
linear_model.fit(data_pipe.transform(images[train_ids]))
trained_models["Linear"] = {"model": linear_model, "embedder": data_pipe}

Classifier features (as in Sec. 6 of [2])

Here, we use the oracle classifier to extract feature embeddings and fit a Ridge model on these classifier features. This is possible using the convenient kooplearn’s FeatureMapEmbedder.

from kooplearn.torch.utils import FeatureMapEmbedder

embedder = FeatureMapEmbedder(encoder=oracle)
images_embedded = embedder.transform(images[train_ids])
classifier_model = Ridge(n_components=num_digits).fit(
    images_embedded, y=images[train_ids]
)
trained_models["Classifier_Baseline"] = {
    "model": classifier_model,
    "embedder": embedder,
}

Encoder-only methods

We train encoder-only models using the SpectralContrastiveLoss and VampLoss objectives to learn latent spaces in which a linear evolution operator can operate effectively.

class FeatureMap(torch.nn.Module):
    def __init__(self, num_digits: int, normalize_latents: bool = True):
        super().__init__()
        self.normalize_latents = normalize_latents
        self.backbone = CNNEncoder(num_classes=num_digits)
        self.lin = torch.nn.Linear(num_digits, num_digits, bias=False)

    def forward(self, X, lagged:bool=False):
        z = self.backbone(X)
        if self.normalize_latents:
            z = torch.nn.functional.normalize(z, dim=-1)
        if lagged:
            z = self.lin(z)
        return z

def train_encoder_only(criterion: torch.nn.Module):
    num_epochs = 50
    train_dataset = torch.from_numpy(images[train_ids]).float()
    val_dataset = torch.from_numpy(images[val_ids]).float()
    # Poor's man lagged dataloaders
    batch_size = 64
    train_dl = DataLoader(
        TensorDataset(
            train_dataset[:-1],
            train_dataset[1:]),
        batch_size=batch_size,
        shuffle=True
        )
    val_dl = DataLoader(TensorDataset(val_dataset[:-1], val_dataset[1:]), batch_size=batch_size)

    torch.manual_seed(42)
    # Initialize model, loss and optimizer
    model = FeatureMap(num_digits).to(device)
    optimizer = torch.optim.AdamW(model.parameters(), lr=2e-3)

    def step(batch, is_train:bool = True):
        batch_X, batch_Y = batch
        batch_X, batch_Y = batch_X.to(device), batch_Y.to(device)
        if is_train:
            optimizer.zero_grad()
        phi_X, phi_Y = model(batch_X), model(batch_Y, lagged=True)
        loss = criterion(phi_X, phi_Y)
        if is_train:
            loss.backward()
            optimizer.step()
        return loss.item()

    for epoch in range(num_epochs):
        # Training phase
        model.train()
        train_loss = []
        for batch in train_dl:
            train_loss.append(step(batch))
        # Validation phase
        model.eval()
        val_loss = []
        with torch.no_grad():
            for batch in val_dl:
                val_loss.append(step(batch, is_train=False))

        if (epoch + 1)%5 == 0 or (epoch == 0):
            print(f"EPOCH {epoch + 1:>2}  Loss: {np.mean(train_loss):.2f} (train) -  " /
                  f"{np.mean(val_loss):.2f} (val)")

    embedder = FeatureMapEmbedder(encoder=model)
    evolution_operator_model = Ridge(n_components=num_digits).fit(
        embedder.transform(train_dataset), train_dataset.numpy(force=True)
        )

    return {
        "model": evolution_operator_model,
        "embedder": embedder,
    }

from kooplearn.torch.nn import SpectralContrastiveLoss, VampLoss

for name, criterion in zip(["VAMPNets", "Spectral Contrastive Loss"],
                           [ VampLoss(center_covariances=False), SpectralContrastiveLoss()]):
    print(f"Fitting {name}")
    trained_models[name] = train_encoder_only(criterion)

Fitting VAMPNets
EPOCH  1  Loss: -3.79 (train) -  -4.35 (val)
EPOCH  5  Loss: -4.81 (train) -  -4.61 (val)
EPOCH 10  Loss: -4.93 (train) -  -4.69 (val)
EPOCH 15  Loss: -4.97 (train) -  -4.70 (val)
EPOCH 20  Loss: -4.97 (train) -  -4.71 (val)
EPOCH 25  Loss: -4.98 (train) -  -4.70 (val)
EPOCH 30  Loss: -4.98 (train) -  -4.72 (val)
EPOCH 35  Loss: -4.98 (train) -  -4.72 (val)
EPOCH 40  Loss: -4.99 (train) -  -4.72 (val)
EPOCH 45  Loss: -4.99 (train) -  -4.72 (val)
EPOCH 50  Loss: -4.99 (train) -  -4.73 (val)
Fitting Spectral Contrastive Loss
EPOCH  1  Loss: -0.94 (train) -  -1.00 (val)
EPOCH  5  Loss: -1.00 (train) -  -1.00 (val)
EPOCH 10  Loss: -1.67 (train) -  -1.90 (val)
EPOCH 15  Loss: -2.80 (train) -  -2.78 (val)
EPOCH 20  Loss: -2.94 (train) -  -2.90 (val)
EPOCH 25  Loss: -3.82 (train) -  -3.91 (val)
EPOCH 30  Loss: -4.58 (train) -  -4.59 (val)
EPOCH 35  Loss: -4.85 (train) -  -4.81 (val)
EPOCH 40  Loss: -4.90 (train) -  -4.91 (val)
EPOCH 45  Loss: -4.96 (train) -  -4.93 (val)
EPOCH 50  Loss: -5.00 (train) -  -4.97 (val)

Dynamical Autoencoder [3]

To complement the encoder-only methods, we also train a dynamical autoencoder that jointly learns an encoder, a decoder, and a linear evolution operator.

from kooplearn.torch.nn import AutoEncoderLoss


class DynamicalAutoEncoder(torch.nn.Module):
    def __init__(self, num_digits):
        super().__init__()
        self.encoder = CNNEncoder(num_digits).to(device)
        self.decoder = CNNDecoder(num_digits).to(device)
        self.evolution_operator = torch.nn.Linear(num_digits, num_digits, bias=False).to(device)
        self.loss = AutoEncoderLoss()

    def forward(self):
        pass

    def train_step(self, batch, optimizer, is_eval: bool = False):
        X, Y = batch
        X, Y = X.to(device), Y.to(device)
        if not is_eval:
            optimizer.zero_grad()
        X_enc, Y_enc = self.encoder(X), self.encoder(Y)
        X_rec = self.decoder(X_enc)
        X_evo = self.evolution_operator(X_enc)
        Y_pred = self.decoder(X_evo)
        loss = self.loss(X, Y, X_rec, Y_enc, X_evo, Y_pred)
        if not is_eval:
            loss.backward()
            optimizer.step()
        return loss.item()

def train_autoencoder():
    torch.manual_seed(42)
    num_epochs = 50
    train_dataset = torch.from_numpy(images[train_ids]).float()
    val_dataset = torch.from_numpy(images[val_ids]).float()
    # Poor's man lagged dataloaders
    batch_size = 64
    train_dl = DataLoader(
        TensorDataset(
            train_dataset[:-1],
            train_dataset[1:]),
        batch_size=batch_size,
        shuffle=True
        )
    val_dl = DataLoader(TensorDataset(val_dataset[:-1], val_dataset[1:]), batch_size=batch_size)
    # Model and optimizer
    model = DynamicalAutoEncoder(num_digits)
    optimizer = torch.optim.AdamW(model.parameters(), lr=2e-3)
    for epoch in range(num_epochs):
        model.train()
        train_loss = []
        for batch in train_dl:
            train_loss.append(model.train_step(batch, optimizer))
        # Validation phase
        model.eval()
        val_loss = []
        with torch.no_grad():
            for batch in val_dl:
                val_loss.append(model.train_step(batch, optimizer, is_eval=True))

        if (epoch + 1)%5 == 0 or (epoch == 0):
            print(f"EPOCH {epoch + 1:>2}  Loss: {np.mean(train_loss):.2f} (train) -  " \
                  f"{np.mean(val_loss):.2f} (val)")

    embedder = FeatureMapEmbedder(encoder=model.encoder, decoder=model.decoder)
    evolution_operator_model = Ridge(n_components=num_digits).fit(embedder.transform(train_dataset))

    return {
        "model": evolution_operator_model,
        "embedder": embedder,
    }

trained_models["AutoEncoder"] = train_autoencoder()

EPOCH  1  Loss: 0.20 (train) -  0.14 (val)
EPOCH  5  Loss: 0.13 (train) -  0.12 (val)
EPOCH 10  Loss: 0.10 (train) -  0.10 (val)
EPOCH 15  Loss: 0.10 (train) -  0.10 (val)
EPOCH 20  Loss: 0.10 (train) -  0.10 (val)
EPOCH 25  Loss: 0.10 (train) -  0.10 (val)
EPOCH 30  Loss: 0.10 (train) -  0.10 (val)
EPOCH 35  Loss: 0.09 (train) -  0.10 (val)
EPOCH 40  Loss: 0.09 (train) -  0.10 (val)
EPOCH 45  Loss: 0.09 (train) -  0.10 (val)

Warning: The fitting algorithm discarded 1 dimensions of the 5 requested out of numerical instabilities.
The rank attribute has been updated to 4.
Consider decreasing the rank parameter.

EPOCH 50  Loss: 0.09 (train) -  0.10 (val)

Final Comparison

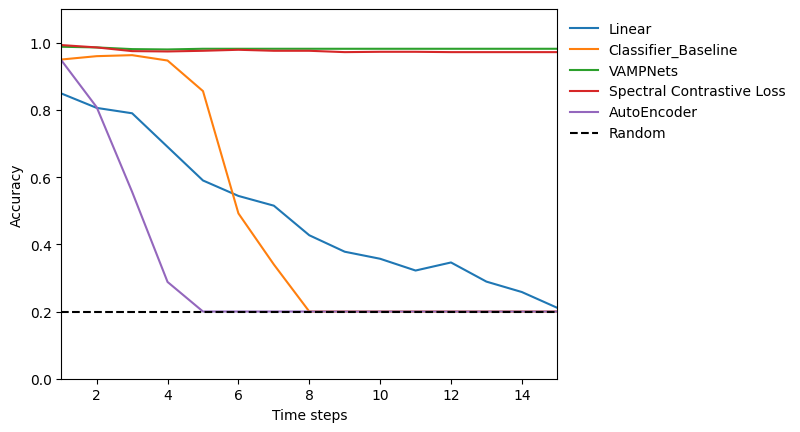

We iteratively predict multiple future steps with each trained model and evaluate the predictions using the oracle classifier.

The results are visualized by plotting accuracy over time and displaying example predicted frames.

test_data = images[test_ids]
test_labels = labels[test_ids]
def evaluate_model(model, embedder, num_evaluation_steps = 15):
    report = {
        'accuracy': [],
        'label': [],
        'image': [],
        'times': []
    }
    img = test_data
    for t in range(1, num_evaluation_steps + 1):
        if hasattr(embedder, "decoder") and embedder.decoder is None:
            img = model.predict(embedder.transform(img), observable=True)
        else:
            _img = model.predict(embedder.transform(img))
            img = embedder.inverse_transform(_img)
        pred_labels = oracle(
            torch.tensor(img, device=device, dtype=torch.float)
            ).argmax(axis=1).numpy(force=True)
        accuracy = (pred_labels == (test_labels + t)%num_digits).mean()
        report['accuracy'].append(accuracy.item())
        report['image'].append(img)
        report['label'].append(pred_labels)
        report['times'].append(t)
    return report

report = {}

for model_name, result in trained_models.items():
    report[model_name] = evaluate_model(result["model"], result["embedder"])

fig, ax = plt.subplots()
for model_name in report.keys():
    t = report[model_name]['times']
    acc = report[model_name]['accuracy']
    ax.plot(t, acc, label=model_name)

ax.axhline(1/num_digits, color='black', linestyle='--', label='Random')

ax.legend(frameon=False, bbox_to_anchor=(1, 1))
ax.margins(x=0)
ax.set_ylim(0, 1.1)
ax.set_xlabel('Time steps')
ax.set_ylabel('Accuracy')
plt.show()

nun_models = len(report)
num_cols = len(report['Linear']['times'])
fig, axes = plt.subplots(
    nun_models, num_cols, figsize=(num_cols, nun_models), sharex=True, sharey=True
    )

test_seed_idx = 0
# Remove margins between columns
plt.subplots_adjust(wspace=0)

for model_idx, model_name in enumerate(report.keys()):
    # First column
    ax = axes[model_idx, 0]
    ax.imshow(test_data[test_seed_idx], cmap='Greys')
    ax.set_axis_off()

    for prediction_step in range(num_cols - 1):
        pred_label = report[model_name]['label'][prediction_step][test_seed_idx]
        true_label = (
            test_labels[test_seed_idx] + report[model_name]['times'][prediction_step]
            )%num_digits
        img = report[model_name]['image'][prediction_step][test_seed_idx]

        # Set subplot for the current class
        ax = axes[model_idx, prediction_step + 1]

        # Plot the MNIST image
        ax.imshow(img, cmap='Greys')

        # Remove axes and ticks
        ax.set_xticks([])
        ax.set_yticks([])
        ax.axis('off')

        # Add a white background for the subplot
        ax.set_facecolor('white')

        # Add an inset for the predicted label in the upper right corner
        if pred_label == true_label:
            color = 'green'
        else:
            color = 'red'
        inset_ax = ax.inset_axes([0.75, 0.75, 0.25, 0.25])
        inset_ax.set_xlim(0, 1)
        inset_ax.set_ylim(0, 1)
        inset_ax.text(0.5, 0.4, f"{pred_label}" , color=color, fontsize=9, ha='center', va='center')
        inset_ax.set_xticks([])
        inset_ax.set_yticks([])
        inset_ax.set_facecolor('white')

# Display the model names on the left of each row
for model_idx, model_name in enumerate(report.keys()):
    axes[model_idx, 0].text(
        -0.1,
        0.5,
        model_name.replace('_', ' '),
        fontsize=14,
        ha='right',
        va='center',
        transform=axes[model_idx, 0].transAxes)

for class_idx in range(num_cols):
    title = (test_labels[test_seed_idx] + class_idx)%num_digits
    if class_idx == 0:
        axes[0, class_idx].set_title(f"Seed: {title}", fontsize=14)
    else:
        axes[0, class_idx].set_title(f"{title}", fontsize=14)
plt.show()

The plots above illustrate that encoder-only methods outperform other approaches in predicting long-term dynamics, maintaining higher accuracy over extended forecast horizons.

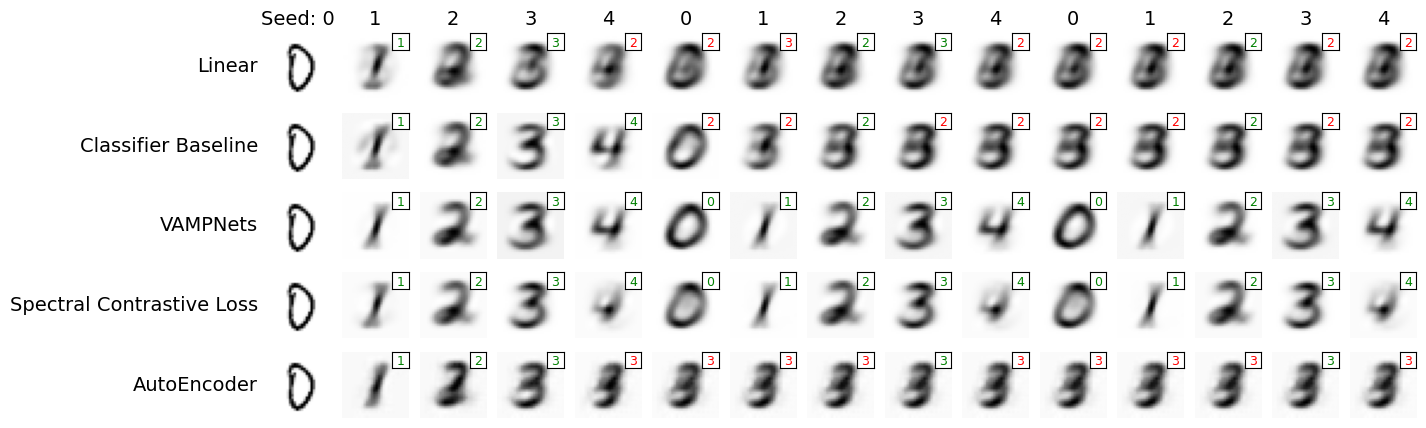

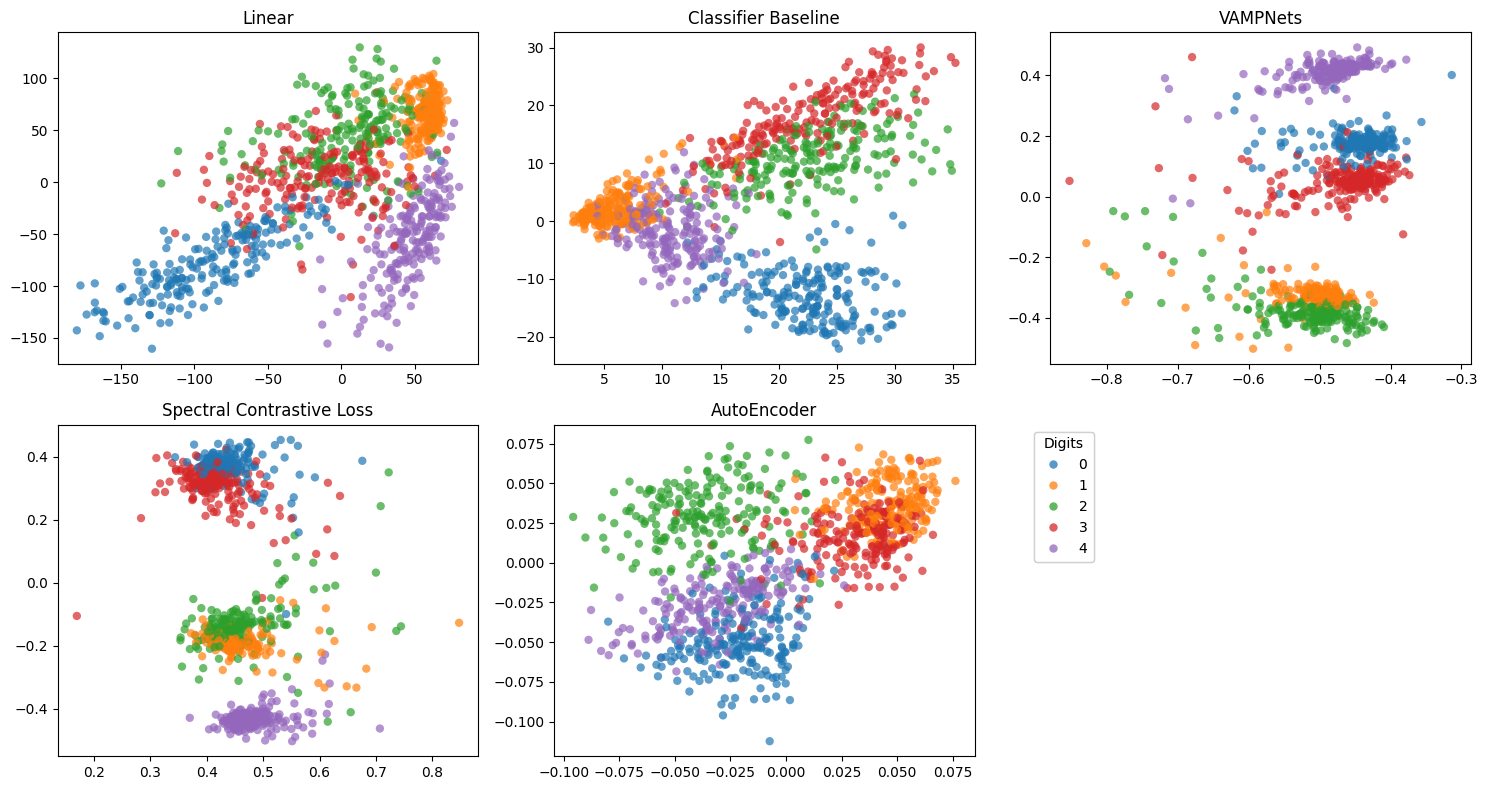

Finally, we visualize the leading eigenfunctions corresponding to the two largest-magnitude eigenvalues of each trained evolution operator model.

from kooplearn._utils import stable_topk

n_models = len(report.keys())
num_rows, num_cols = 2, 3
fig, axes = plt.subplots(num_rows, num_cols, figsize=(15, 8))
axes = axes.flatten()
for model_idx, model_name in enumerate(report.keys()):
    ax = axes[model_idx]
    ax.title.set_text(model_name.replace('_', ' '))
    fitted_model = trained_models[model_name]['model']
    embedder = trained_models[model_name]['embedder']
    vals, lfuncs, rfuncs = fitted_model.eig(
        eval_right_on=embedder.transform(test_data),
        eval_left_on=embedder.transform(test_data)
        )

    unique_vals, idx_start = np.unique(np.abs(vals), return_index=True) # returns the unique values
    # and the index of the first occurrence of a value

    vals, lfuncs, rfuncs = vals[idx_start], lfuncs[:, idx_start], rfuncs[:, idx_start]
    top_vals, top_indices = stable_topk(np.abs(vals), 2)
    idx_i = top_indices[0]
    idx_j = top_indices[1]

    fns = lfuncs
    fn_i = fns[:, idx_i].real
    fn_j = fns[:, idx_j].real

    scatter = ax.scatter(fn_i, fn_j, c=test_labels, cmap='tab10', vmax=10, alpha=0.7, linewidths=0)

# remove last axis and add legend
ax = axes[n_models-1]
legend = ax.legend(*scatter.legend_elements(num=4),
                   title="Digits",
                   frameon=True,
                   bbox_to_anchor=(1.3, 1))
ax.add_artist(legend)
fig.delaxes(axes[n_models])

plt.tight_layout()
plt.show()

The two leading eigenfunctions obtained using encoder-only methods form clearly separated clusters, in contrast to those from the Linear, Classifier Features, and Autoencoder models, which display overlapping clusters.

Clusters separation is particularly pronounced for embeddings learned with SpectralContrastiveLoss, highlighting that the latent space effectively disentangles the dynamics of different digits.

[1]

Vladimir R. Kostic, Pietro Novelli, Riccardo Grazzi, Karim Lounici, and Massimiliano Pontil. Learning invariant representations of time-homogeneous stochastic dynamical systems. In The Twelfth International Conference on Learning Representations. 2024. URL: https://openreview.net/forum?id=twSnZwiOIm.

[2]

Vladimir Kostic, Pietro Novelli, Andreas Maurer, Carlo Ciliberto, Lorenzo Rosasco, and Massimiliano Pontil. Learning dynamical systems via koopman operator regression in reproducing kernel hilbert spaces. Advances in Neural Information Processing Systems, 35:4017–4031, 2022.

[3]

Bethany Lusch, J. Nathan Kutz, and Steven L. Brunton. Deep learning for universal linear embeddings of nonlinear dynamics. Nature Communications, November 2018. URL: https://doi.org/10.1038/s41467-018-07210-0, doi:10.1038/s41467-018-07210-0.
